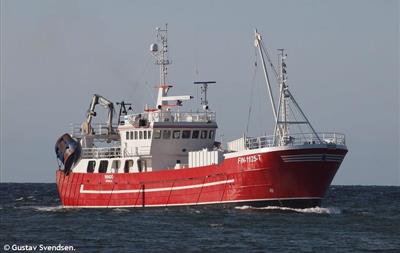

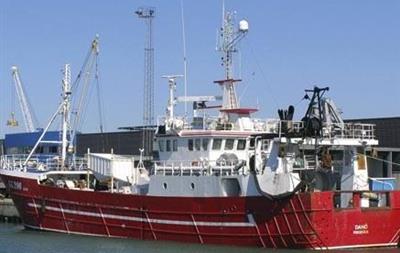

T346 Pelagic trawler
Dimensions:39,96 x 8,69 m
BT:526
Built:1985
Country where built:Sweden
Engine:Deutz
Power:1110 kW
material:Steel
Price:Euro 1,5 mio


miscellaneous
Built at Kalmar shipyard, 1985, to DNV +1A1, ICE-C, E0, but DNV class not activated
Design Vik & Sandvik, Norway
Class Finnish Maritime Inspection

39,96 x 8,69 m. 526 GT/ 157 NT

Deutz SBV 6M628, 1110 kW, 170 000 hours, 10 000 after full factory overhaul
Reintjes VAL1450 gear, ratio 4,55:1
Frank Moon frontgear
JW Bergs580 D-3 high screw propeller, 220 rpm, 2350 mm,-13, Bergs nozzle, -13
Bollard pull 23 ts
2 x Volvo Penta 122A, -99, 247 kW, 13 000 hours after overhaul, connected to 2 x 290 kVA generators
Electric hydraulic station, 160 kW
Jastram bow thruster, 150 hp
Fuel oil, 80 m3, fresh water 20 m3

6 x RSW-tankar, 400 m3, Tecknoterm, 520 000 kcal, ammonium, 2 x Mycon screw compressors 2 x cargo hold, 36 m3, cargo hold 120 m3, 580-600 ts industrial fish.
RSW tanks totally sandblasted, -13
Vaccum unloading, ├ľnnereds svets, 1500 lit
Geneglace flake-ice maker, 5 ts/day

2 x trawl winches, 13 lit Bauer, 25 ts, 550 m x 24 mm wire
2 x net drums, 25 ts, 16 lit Bauer + 10 lit Bauer.
2 x aux winches, 2 x bouy winches,Sond winch
Hiab Sea Crane 120, on gantry aft
Fish hose reel, hydraulic hose reel

2 x KM gutting machines, 2 x KM conveyor belts, 2 x KM washbins/elevator, -11
UniSystem and ScanVaegt fish scale

Furuno 2117X radar, -09, Furuno 2137S, -12
Celvin Hughes radar, 10 cm
Simrad SX90 asdic, -08
Simrad ES80 echo sounder, split beam
ENL WMB-160F WASSP multibeam echo sounder
Furuno FCV-1900A echo sounder, -18
Olex sea chart plotter
TimeZero plotter
Scanmar ScanBas365, trawl monitoring,-18
2 x Scanmar 40 kHz hydrophones, -18
ScanmarWDR-42 receiver unit -18
Robertsson AP45 autopilot
Furuno SC-30 satellite compass
Robertson RGC11 gyrocompass
GMDSS A2, -11
Furuno FS-1562 SSB,Furuno FA-150 AIS
Sailor Inmarsat-C, Sailor SC4000 sat.tel

Acco 4 x 2 men, 1 x 4 men
