T401
dimensioner:57,67 x 12,00 m
BT:1461
byggår:1995
byggland:Norge
maskin:Wärtsilä Wichman
styrka:3901 kW
material:Stål
pris:DKK 30 milj


övrigt

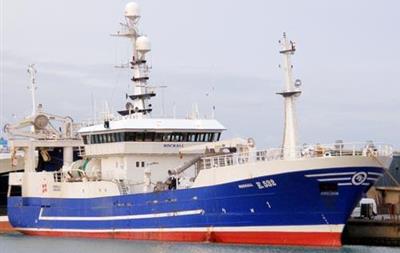

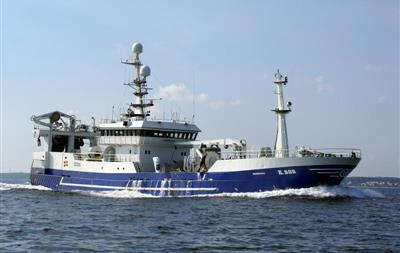

Pelagic trawler built at Simek AS, Norge 1995

57,67 x 12,00 x 6,8 m (draft), 8,07 (depth). 1461 GT

Bureau Veritas. Due June 2020.

Wärtsilä Wichman 12B28B, 600 rpm, 5300 hp, major overhaul -17
Wärtsilä Wichman SCV750 gearbox, overhaul -16
4 bladed propeller in nozzle, 3600 mm, 140 rpm
2 x Brunvoll thrusters, 575 hp each. 12,5 kn. on 400 l/hr
Caterpillar C18 aux eng, 600 kW, new -16
Caterpillar 3306 harbour gen set, 200 kVA, last service -16
Stamford shaft gen. 2250 kVA
Fuel separator, oil separator, water separator, CJC filter
Tenfjord steering gear
Bunkers, diesel 307 m3
, fresh water 53 m3

1340 m3 in 9 RSW fishtanks
Teknoterm cooling, 2 x 600 000 kcal/hr, R22, new condensors -17, compressors overhaul -17

2 x 65 t trawl winches, Karmöy 1300 fm, wire measurement
2 x 40 t net drums, Karm
50 t topline winch, Karm
35 t midline winch, Karm
25 t tail end winch, Karm
Transducer cable winch, Karmöy
Anchor winch, capstan winch, mooring winch
Deck crane, 25 tm, on gantry,Karmöy
Deck crane, 32 tm, Karmöy

Fish pump, 18´, Karmöy
Fish pump Sea Quest, 18´
MMC discharge vaccum pump, dual operation, two new pumps

2 x Furuno radar FAR 2117, -12/-14
Kaijo sonar KCS 3220
Kaijo sonar KCH 3180
Simrad trawl sonar, Net sounder monitor
Marport large trawl eye
Furuno echo sounder FCV 1150, dual freq -15
Furuno GMDSS, Sart gyro, SatC, GPS, VHF, tide machine
Simrad AP50 autopilot
MaxSea Plotter, Trax plotter, Penta plotter
IP phone int connection -13
AIS JHS 183 -15

Acco for 16 pers. (11 cabins and hospital)

Can be delivered quickly
